Video Wall over IP Extender Kit with PoE

imgres

Categories: , ,

Product Description

The Video Wall over IP Extender Kit with PoE allows HDMI equipment to be connected to create a Video Wall of a user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

The transmitter unit is connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat5e/6 cable between equipment.

Set-up and configuration of the video wall function is carried out using the MuxLab ProDigital Network Controller (500811) – sold separately.





FEATURES


  • Configure a Video Wall array with 100’s of displays, depending on network bandwidth

  • HDMI 1.3

  • Supports up to 1080p resolutions

  • Visually lossless video (1 frame latency)

  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications

  • Transmission up to 330ft (100m) over Cat5e/6

  • Transmission up to 390ft (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario

  • Supports RS232 and IR transmission for remote control

  • PoE powered

  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

  • Receivers also sold individually (500754-RX)

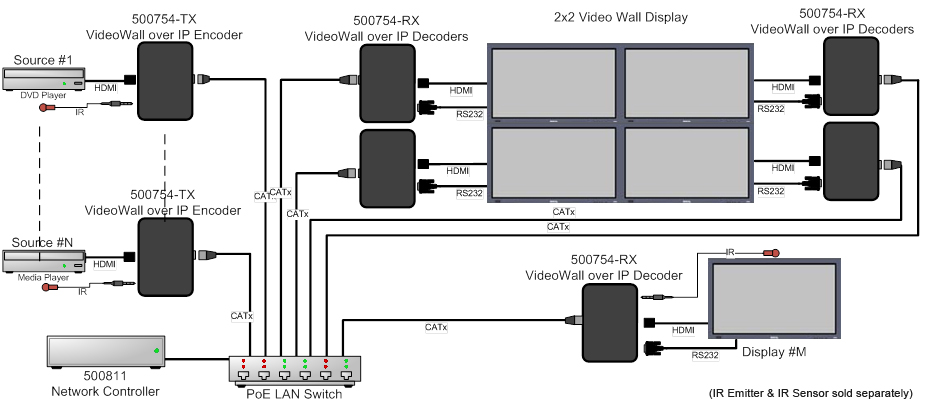

Application Diagrams

500754-Appl-Diag
