IT7800

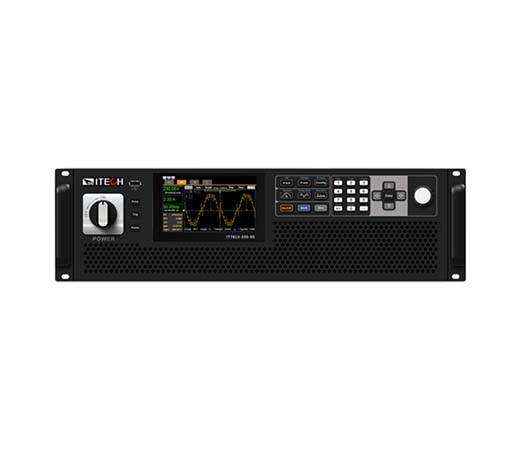

ITECH IT7800 Series Programmable AC/DC Power Source
ITECH IT7800 3U high series of programmable AC/DC power supply, with power up to 15kVA, voltage ranges up to 350V L-N and 500V
L-N. Users are able to increase output power up to 960kVA by configuring master-slave parallel. With intuitive LCD touch panel interface,
users can be quickly familiar with the unit operation.
IT7800 series is built-in power meter and arbitrary waveform generator, which is able to simulate harmonics and other arbitrary waveform
output. Users can choose single phase, three-phase, phase reversal, and multi-channel totally 4 output modes, with programmable output,
and complete measurements, ITECH IT7800 series is designed for new energy, power electronics, research institutes, etc.
Product Description
ITECH IT7800 Series Features• High power density, 3U up to 15kVA
• Master-slave parallel with current sharing technology, up to 960kVA, multiple units in
parallel work as one
• Voltage up to 350V L-N, 500V L-N
• Output frequency: 16-2400Hz, programmable slew rate setting for changing voltage and frequency
• Built-in single/3-phase AC power meter
• Multi-channel function, single unit can connect/test up to 3 DUTs
• 4 output modes: AC/DC/AC+DC/DC+AC
• Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc.
• Comprehensive harmonics measurement and analysis, up to 50th
• Harmonics, inter-harmonics waveform synthesizer, according to IEC
• 61000-4-13*1
• Programmable output impedance, according to IEC 61000-3-3
• Intuitive touch screen interface
• Simulate arbitrary waveform output, support csv. file import
• Built-in various waveforms
• List mode simulates the power supply reproduction function to realize the simulation function of instantaneous power interruption
• Provides various trigger input/output signals. When amplitude/frequency change, trigger signals can be generated to synchronously capture the current waveform of DUTs
• Output 0-360 ° start/stop phase angle can be set
• Surge/Sag function
• Relay CTRL function, to cut off the connection between instrument and DUT
• Built-in USB/CAN/LAN/Digital IO interface, optional GPIB /
• Analog&RS232
• With professional software, set up programs comply with multinational security
regulations and test conditions, to complete civil aviation electronics
and IEC related standards testing
