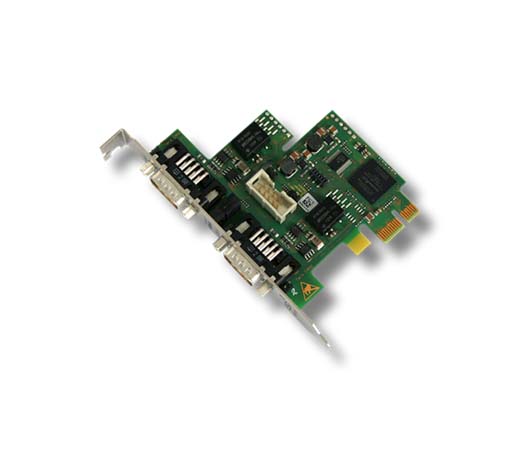

Model CAN-PCIe / 402
PCI Express® board with up to 4 CAN or CAN FD interfaces
Single Lane PCIe board with Altera FPGA for up to 4x CAN (FD)
CAN bit rates from 10 kbit / s up to 1 Mbit / s
PCIe® interface according to PCI Express specification R1.0a
MSI (Message Signaled Interrupts) support
CAN termination can be activated on-board
Comprehensive operating system support and extended CAN diagnostics
Software drivers and support for higher protocols for Windows®, Linux®, VxWorks®, QNX®, RTX, RTX64 and other operating systems
Product Description
Single Lane PCIe board with Altera FPGA for up to 4x CAN (FD)1x, 2x or 4x CAN or CAN FD interface according to ISO 11898-2
CAN bit rates from 10 kbit / s up to 1 Mbit / s
Bus mastering and local data management via FPGA
PCIe® interface according to PCI Express specification R1.0a
MSI (Message Signaled Interrupts) support
CAN termination can be activated on-board
Comprehensive operating system support and extended CAN diagnostics
Software drivers and support for higher protocols for Windows®, Linux®, VxWorks®, QNX®, RTX, RTX64 and other operating systems
CANopen®, J1939 and ARINC825 support
esd Advanced CAN Core ( esdACC ) technology
Versatile design
Product variants with and without galvanic isolation available
Low profile version for 1x CAN (FD) or 2x CAN (FD) available
Variant with 4x CAN or CAN FD via 1x DSUB37 connector available (an adapter cable is available as an option)
Free drivers for Windows and Linux included
