VGA/AUDIO TRANSMITTER UHD-4K-500455

HDMI – VGA/AUDIO WALL-PLATE TRANSMITTER, UHD-4K

imgres

Categories: , ,

Product Description

The HDMI/RS232 Extender Kit allows HDMI equipment to be connected up to 230 ft (70 m) at all resolutons up to 1080p via one Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration.

Furthermore, the product supports RS232 to allow control commands to be transmitted between the HDMI source and receiver.

FEATURES















  • Selectable HDMI/ VGA with audio input

  • Support of VGA output resolution up to 1920×1200

  • High bandwidth: 10.2Gbps

  • Built-in scaler function supports scaling HDMI/ VGA signals to match the native resolution of the display

  • Transmission of HDMI signals up to 4K

  • Compliant with HDMI 1.4, supports 1080p and 3D

  • HDCP compliance, equipped with HDCP auto-tracking solution

  • Auto-switching capability

  • Support of multiple control methods including front panel buttons and RS232. Serial interface supports bi-directional RS232 pass-through control

  • Supports firmware upgrading via USB

  • Powered by local 12VDC power supply

  • Aluminium design for elegant and better cooling

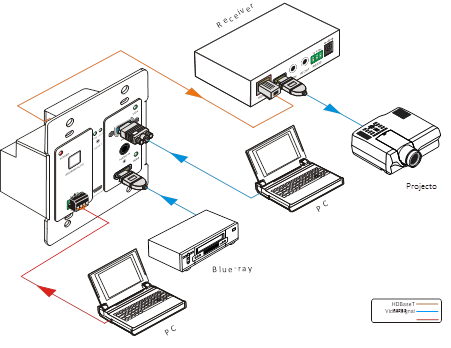

Application Diagrams

500455-WP
