Product Description



The HDMI over IP H.264 PoE Extender Kit allows HDMI source and display equipment to be connected in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, in a flexible, expandable and cost effective manner, without the need to install dedicated cabling systems. Connectivity may be up to 330ft (100m) @ 1080p via Cat5e/6 UTP cable, and the device supports PoE (PD) if used with a PoE (PSE) Ethernet Switch.



FEATURES

• Supports HDMI up to 1080p resolution @ 30Hz


• Supports 100’s of Transmitters & Receivers depending on network bandwidth


• H.264 compression supports high image quality


• High compression rate suitable for WiFi transmission


• Extend HDMI up to 330ft (100m) over Cat5e/6


• Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications


• Supports RS232 and IR transmission for remote control


• PoE powered

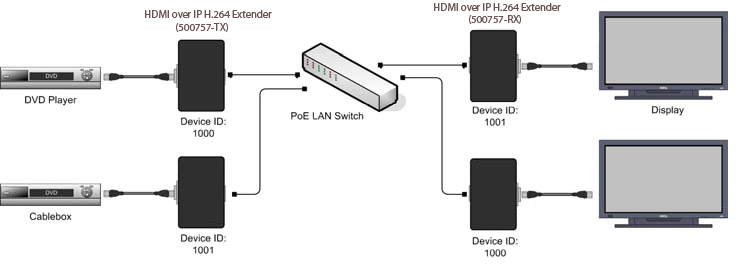

Application Diagrams
