Radius

Radius

  • A Powerful General Purpose DSP / A Version with AEC
  • 128 Channel (64×64) Redundant Dante
  • On-board Ethernet and Dante Network Switches
  • 1 I/O Expansion Card Slot
  • 12 Analog Inputs / 8 Analog Outputs



Product Description

Dante™ in Our DNA.  Radius DSPs are equipped with 128 (64×64) redundant Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled end points.

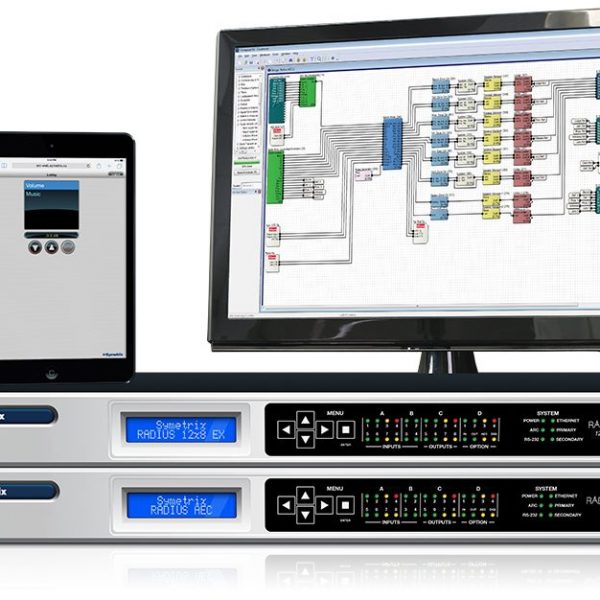

Two Models.  Radius 12×8 EX is a versatile universal DSP building block. Radius AEC has all the processing power of Radius 12×8 EX with the addition of high performance wide-band acoustic echo cancellation featuring zero latency direct outputs and discrete references.

On-board 10/100 and Gigabit Switches.  Unique to Symetrix Radius and Edge DSPs, built in switches lower system cost, reduce or eliminate the need for peripheral switches, and increase system reliability.

Incredible Analog I/O Sound.  Industry leading analog mic-pre, A/D, and D/A performance, 48 volt phantom mic power.

More Usable I/O.  A versatile option card slot reduces total system costs by maximizing the number of inputs or outputs. Adding a 4 Channel Analog Input card creates a 16×8 analog configuration; with a 4 Channel Analog Output card the result is 12×12. I/O cards support analog and AES-3 digital expansion as well as special purpose interfaces including AEC, VoIP, and analog telephone.

Unlimited Programming Flexibility.  Radius is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy.  Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control.  Radius’ embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.
