ATE Systems, Data Acquisition Systems, General Laboratory Instruments, LXIbus Instruments, Switching Systems, Test & Measurement

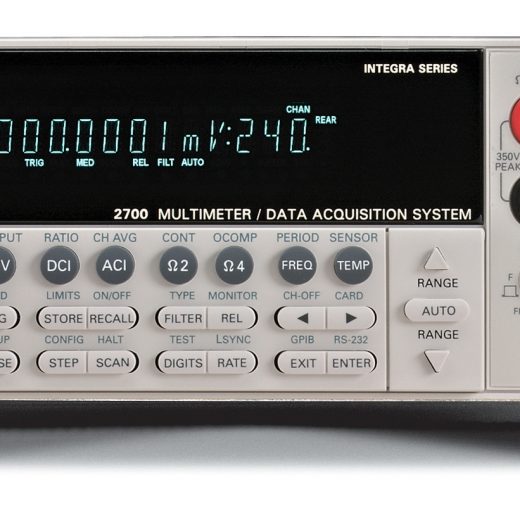

Keithley 2700 series
Measurements, Switching, and Data Acquisition—All in One BoxEach Series 2700 system combines precision measurement, switching, and control in a tightly integrated enclosure for either rack-mount or bench-top applications. Although the core functionality and programming of all three systems are identical, each mainframe has unique capabilities. For example, the Model 2701 provides a 10/100BaseTX Ethernet interface, and the Model 2750 offers extended low ohms measurement capability. All models are compatible with the same line of plug-in multiplexer, matrix, or control modules.
-
AC and DC Electronic Loads, Power Sources & Measurement, Test & Measurement
Keithley 2380 series
Compact standalone DC Electronic Loads with excellent performance at an affordable priceSeries 2380 programmable DC Electronic Loads are single output, standalone loads with 200W, 250W and 750W models. Multiple operation modes with up to 25 kHz of dynamic cycling, superior voltage/current resolution and readback accuracy together with multiple interface choices make the Series 2380 ideal for testing a power source in your bench.
-
DC Power Supplies, Power Sources & Measurement, Test & Measurement
Keithley 2260 series
Source voltages up to 800V and currents up to 108ASource a wide range of voltages and currents with the 360W, 720W, or 1080W Series 2260B Programmable DC Power Supplies. The 360W versions can output current of 36A, 13.5A, 4.5A, or 1.44A; the 720W models can output 72A, 27A, 9A, or 2.88A; and the 1080W instruments can output 108A, 40.5A, 13.5A or 4.32A. This wide range of output voltages and current, combined with multiple interface choices, makes the Series 2260B ideal for use in a wide range of applications, including research and design, quality control, and production test.
-
DC Power Supplies, Power Sources & Measurement, Test & Measurement

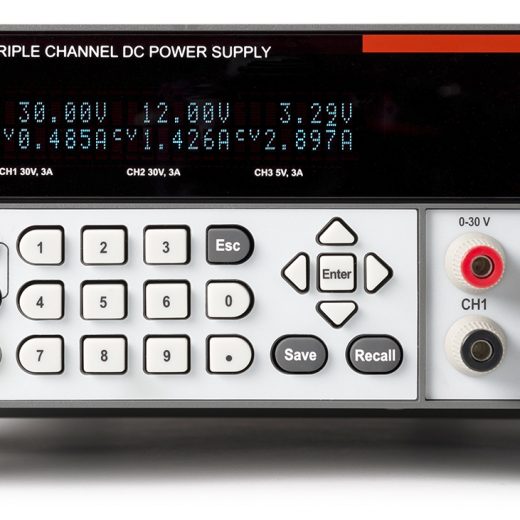

Keithley 2231
Multiple outputs to power multiple circuits or devicesSeries 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with up to 5A output for powering digital circuits. The Model 2231A-30-3’s two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A.
-
DC Power Supplies, Power Sources & Measurement, Test & Measurement

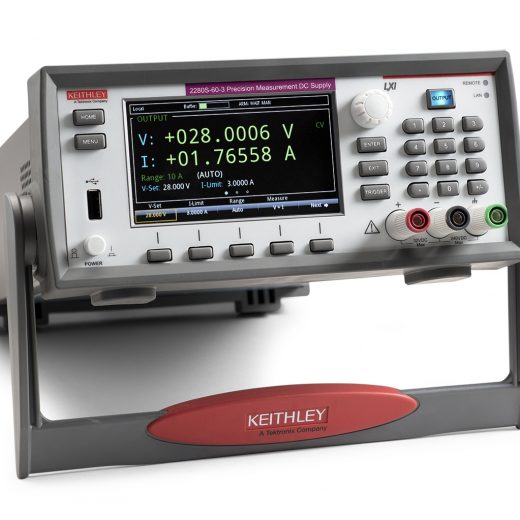

Keithley 2280 series
Clean power paired with precision measurementsSeries 2280S supplies deliver up to 192W of low output noise power and superior load current measurement sensitivity. Built-in plotting functions allow monitoring trends such as drift. These supplies offer up to 6½-digit resolution for characterizing small changes in load currents with confidence. Four load current measurement ranges support measuring a device’s full load current, standby mode current, and small sleep mode currents with DMM-quality accuracy.
-
Battery Analyzers, Battery Simulator, Test & Measurement
Keithley 2281S battery simulator
2281S-20-6 Dynamic Model Battery Simulator
The 2281S-20-6 Dynamic Battery Simulator uses a model to emulate the response of a battery over its discharge cycle. Since the model can be based on the average current of the product that the battery will power, you can estimate battery life and analyze product performance over the life of the battery.
Estimate the battery life of your product
Power your product with the 2281S-20-6 using a model to determine how long the product operates.
Highlights
- 101-point model contains open circuit voltage and internal resistance as a function of state of charge
- Create a model based on the average current that the product draws
Quick, repeatable testing under any state of battery discharge
Program the battery simulator for any state of charge, such as near the completely discharged state, to determine how a product performs under a low battery condition and to determine the low battery shut-off voltage.
Highlights
- Program battery open circuit voltage (Voc) and all other model parameters adjust to the open circuit voltage setting
- Alternatively program the state of charge (SOC) and all model parameters adapt to the SOC setting
Unique GUI continuously displays the state of the battery
See key parameters of battery models, including open circuit voltage, internal resistance, remaining capacity, and state of charge.
Highlights
- View open circuit voltage, measured terminal voltage, and load current on the right battery icon
- View state of charge, amp-hour remaining capacity, and internal resistance on the left battery icon
-
Semiconductor Characterization Equipment, Semiconductor Source Measure Units, Test & Measurement

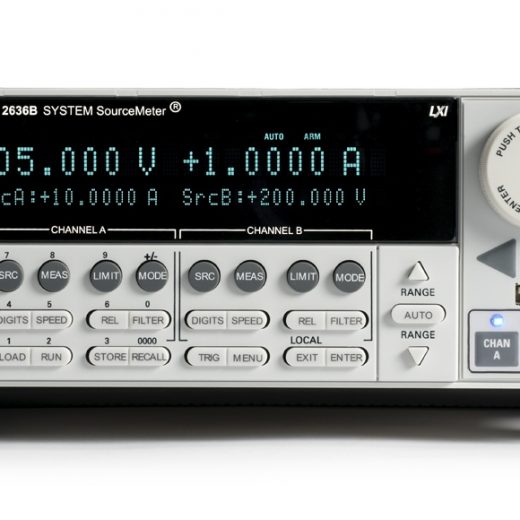

Keithley 2636B
Series 2600B SourceMeter SMU Instruments
Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.
-
Semiconductor Characterization Equipment, Semiconductor Source Measure Units, Test & Measurement, Voltage/Current Sources and Measurement
Keithley 2400
Keithley 2400 SourceMeter SMU Instruments
Keithley 2400 Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on a touchscreen user interface. These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100nV to 200V, for 1000W pulse and 100W DC total power.
-
Semiconductor Parametric Analyzers, Semiconductor Source Measure Units, Test & Measurement

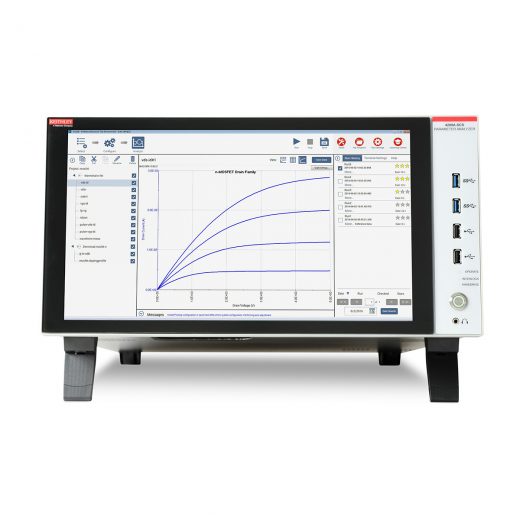

Keithley 4200A
Keithley 4200A-SCS Parameter Analyzer
Accelerate research, reliability and failure analysis studies of semiconductor devices, materials and process development with the 4200A-SCS. The highest performance parameter analyzer, it delivers synchronizing current-voltage (I-V), capacitance-voltage (C-V) and ultra-fast pulsed I-V measurements.
-
Data Acquisition Systems, General Laboratory Instruments
SIRIUS R8D rack display solution
8 to 32 analog inputs
-
Digital Multimeters, General Laboratory Instruments, Test & Measurement
DM7560 DIGITAL MULTIMETER 6.5 DIGIT
The DM7560 is a flexible 6.5-digit digital multimeter with high-accuracy, high-speed data logging (up to 30k S/s) with deep 100k reading memory and built-in statistical analysis.
-
DC Power Supplies, Power Sources & Measurement
IT6800A DC Power Supply
IT6800A series are programmable single channel output DC power supplies
-
DC Power Supplies, Power Sources & Measurement
IT6412 DC Power Supply
IT6412 DC Power Supply unique bipolar voltage/current output
-
ATE Systems, Data Acquisition Systems, PXIbus Instruments, Test & Measurement
PXI-9846D 4-CH, 40MS/S, 16-BIT PXI-H DIGITIZER MODULE
- 4-CH, 40MS/s, 16-bit digitizer
- 512 MB deep on-board memory for recording waveforms for extended periods
- Software selectable 50Ω or 1 MΩ input impedance
- ±0.2V and ±1V input ranges
- External clock support
- Extensive analog and digital triggering
- Fully auto-calibration
-
ATE Systems, Data Acquisition Systems, PXIbus Instruments, Test & Measurement
PXI-2204 64-CH, 3MS/S 12-BIT MULTI-FUNCTION PXI-H MODULE
- 64-CH single ended/32-CH differential, 12-bit scanning analog inputs
- Up to 3 MSa/s sampling rate
- Multiple programmable ranges from 0.05V (min) to 10V with unipolar or bipolar modes
- 2-CH, 12-bit multiplying analog outputs with waveform generation
- 24-CH TTL Digital I/O
- 2-CH 16-bit general purpose timer/counter
- Analog and digital triggering
- Auto-calibration
-
ATE Systems, Data Acquisition Systems, PXIbus Instruments, Test & Measurement
PXI-2010 4-CH, 2MS/S SIMULTANEOUS A/D MULTI-FUNCTION PXI-H MODULE
- 4-CH differential, 14-bit, 2 MS/s analog inputs
- Four programmable ranges 1.25V to 10V with unipolar or bipolar modes
- 2-CH, 12-bit multiplying analog outputs with waveform generation
- 24-CH TTL Digital I/O
- 2-CH 16-bit general purpose timer/counter
- Analog and digital triggering
- Auto-calibration
-
ATE Systems, Data Acquisition Systems, PXIbus Instruments, Test & Measurement
PXI-2005 4-CH, 500KS/S SIMULTANEOUS A/D MULTI-FUNCTION PXI-H MODULE
- 4-CH differential, 16-bit, 500 kS/s analog inputs
- Four programmable ranges 1.25V to 10V with unipolar or bipolar modes
- 2-CH, 12-bit multiplying analog outputs with waveform generation
- 24-CH TTL Digital I/O
- 2-CH 16-bit general purpose timer/counter
- Analog and digital triggering
- Auto-calibration
-
ATE Systems, Data Acquisition Systems, Physical Measurements, PXIbus Instruments, RPM and Speed, Sound and Vibration, Test & Measurement, Torque
PMX04 PORTABLE 4-SLOT 3U PXI EXPRESS ‘TABLET’ WITH INTEGRATED DISPLAY
- 4-slot PXI Express tablet test and computing system
- Hybrid mixed PXI/PXIe slot chassis
- Multipoint capacitive touch screen LCD
- Durable construction for industrial systems
- Integrated 14” 1366 x 768 LCD Display
- Internal Intel Core i7 Quad Core Processor, 1.7 Ghz
- QM67 PCH Chipset, equipped with 4GB DDR3 DRAM
- Internal 256GB HDD Drive standard with SATA 3.0 interface
- Wide range peripheral interface
-
ATE Systems, Data Acquisition Systems, Physical Measurements, PXIbus Instruments, RPM and Speed, Sound and Vibration, Test & Measurement, Torque
EMX-4380 625 KSA/S, 4 CH, 24-BIT SMART PXIE DSA INSTRUMENT, CHARGE, IEPE AND VOLTAGE
- First integrated data acquisition instrument to support IEPE, charge, and voltage inputs
- 625 kSa/s/channel, 24-Bit ADC, 4-Channel
- Flexible analog and user defined digital filter combinations
- True differential inputs with 25 V Isolation
- Exceptional noise immunity
- Highest quality instrumentation grade ADC’s outperform commonly used audio grade ADC’s
- Fully programmable excitation (2 mA to 20 mA)
- Deterministic channel-to-channel, card-to-card, and chassis-to-chassis phase response
-
ATE Systems, Data Acquisition Systems, Physical Measurements, PXIbus Instruments, RPM and Speed, Sound and Vibration, Test & Measurement, Torque
EMX-4350 625 KSA/S, 4-CH, 24-BIT SMART PXIE DSA INSTRUMENT, IEPE AND VOLTAGE
- 625 kSa/s/channel, 24-Bit ADC, 4-Channel
- True Differential, IEPE or Voltage, AD/DC Inputs
- Flexible analog and user defined digital filter combinations
- Best-in-class noise immunity
- Highest quality instrumentation grade ADC’s outperform commonly used audio grade ADC’s
- Best-in-class -125 dB SFDR
- Unparalleled fully programmable excitation (2 mA to 20 mA)
- Deterministic channel-to-channel, card-to-card, and chassis-to-chassis phase response
-
ATE Systems, PXIbus Instruments, Test & Measurement
EMX-4016 16 CHANNEL BREAKOUT BOX FOR USE WITH EMX-425X
- Designed to work with EMX-4250/EMX-4251
- 8 channel (EMX-4008) and 16 (EMX-4016) channel variants available
- LED Channel Health Indicator
- BNC Connections for signals
- External Trigger Connector
- External Calibration Input Connector
- Rack mountable
-
ATE Systems, Data Acquisition Systems, Physical Measurements, PXIbus Instruments, Sound and Vibration, Test & Measurement
EMX-4250 16-CHANNEL, 204.8 KSA/S SMART PXIE DSA DIGITIZER
- 204.8 kSa/s/channel, 24-Bit ADC’s, 16-Channel
- Differential inputs deliver superior common mode performance
- Flexible analog and user defined digital filter combinations
- -105 dB SFDR
- Seven auto-ranging input ranges from 100 mV to 10 V
- Deterministic channel-to-channel, card-to-card, and chassis-to-chassis phase response
-
ATE Systems, Data Acquisition Systems, Physical Measurements, PXIbus Instruments, Sound and Vibration, Test & Measurement
EMX-4251 8-CHANNEL, 204.8 KSA/S SMART PXIE DSA DIGITIZER
- 204.8 kSa/s/channel, 24-Bit ADC’s, 8-Channel
- Differential inputs deliver superior common mode performance
- Flexible analog and user defined digital filter combinations
- -105 dB SFDR
- Seven auto-ranging input ranges from 100 mV to 10 V
- Deterministic channel-to-channel, card-to-card, and chassis-to-chassis phase response
-
ATE Systems, LXIbus Instruments, PXIbus Instruments, Test & Measurement
EMX-2401 INTEL CORE I5 2.4 GHZ, 8 GB RAM, 160 GB HARD DRIVE, PXIE EMBEDDED CONTROLLER
- Powerful computing power with Intel® Core™ i5-520E 2.4 GHz processor
- Dual Channel DDR3 SODIMM, Up to 8 GB 1066 MHz
- Up to 2 GB/s system throughput
- PXI Express Link Capability Four Links Configuration x4 or Two Links x8
- Integrated SATA hard drive, 160 GB 7200 RPM
- Integrated I/O enabling Hybrid test-systems: Dual Gigabit Ethernet ports, Four USB 2.0 ports, Micro-D GPIB connector, DVI-I video connector, ExpressCard/34 expansion slot, Trigger I/O for advanced PXI™ trigger functions
- Programmable watchdog timer
-
ATE Systems, LXIbus Instruments, Test & Measurement
EMX-2500 GIGABIT ETHERNET LXI CONTROLLER FOR EMX SERIES PXIE INSTRUMENTS
- Industry’s first gigabit Ethernet LXI Remote controller for PXI Express
- Up to 100 MB/s sustained throughput
- Allows remote access to VTI’s SentinelEX PXIe instruments from anywhere in the world on any internet enabled device
- Multi-chassis synchronization using precision IEEE-1588-2008 standard time source
- Easy to set up for distributed data acquisition systems
- Simplified instrument discovery and usage – just type in the IP address to connect to the instrument
- IVI drivers supporting wide variety of Application Development Environments and Operating Systems
- REST HTTP protocol for cloud support and advanced web applications
-
ATE Systems, LXIbus Instruments, PXIbus Instruments, Switching Systems, Test & Measurement
CMX34 INTEGRATED PXIE/LXI SUBSYSTEM WITH RECEIVER INTERFACE MECHANISM
- Achieve best performance with hybrid test system that combines exceptional data throughput of PXIe with increased board-space in an LXI mainframe optimized for signal switching.
- PXIe mainframe with high bandwidth PCIe Gen 2 backplane with 2 GB/s bandwidth per slot and 8 GB/s system bandwidth
- EX1200 LXI mainframe for signal switching and I/O where the real estate allows instrument-grade performance
- Fully integrated including cables and receiver modules, ready to drop into a test system
- Subsystems engineered to maximize signal integrity and delivered fully tested and verified to guarantee results
- Save time and money in sourcing, development and deployment
-
ATE Systems, LXIbus Instruments, PXIbus Instruments, Test & Measurement
CMX18 18-SLOT 3U PXI EXPRESS CHASSIS, UP TO 8 GB/S BANDWIDTH
- 18-slot PXI Express chassis with 1 system controller slot, 6 peripheral slots, 10 hybrid slots, and 1 timing slot
- High bandwidth PCIe Gen 2 backplane with 2 GB/s bandwidth per slot (4 GB/s on high-bandwidth slots) and 8 GB/s system bandwidth
- Rugged construction with extended temperature range
- True 4U chassis
- IEEE-1588 distributed instrument synchronization
- Built-in system-monitoring provides confidence in system operation and simplifies debugging
